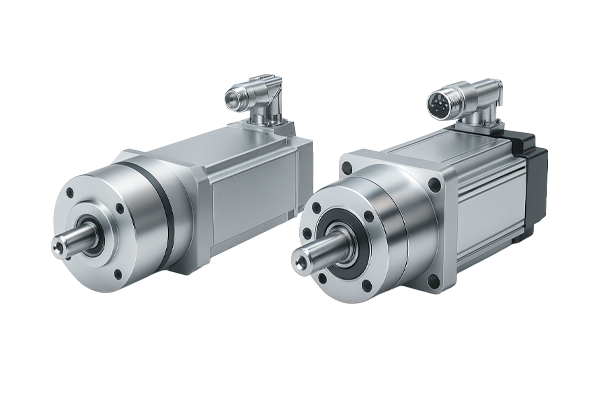

The b-drives planetary gearbox kit
What is the planetary gearbox kit?
The b-drives planetary gearbox kit is a comprehensive modular drive system that offers a suitable drive solution for a wide range of applications and industries.
The b-drives planetary gearbox modular system includes BLDC motors, DC and AC servomotors as well as AC standard motors.
It includes one- to three-stage planetary gearboxes with diameters of 40 mm to 150 mm and permissible output torques of up to 360 Nm.
Advantages of planetary gearboxes
The planetary gearboxes are characterized by a very high power density.
They can therefore transmit high speeds and torques in a very small installation space. A robust design, lifetime lubrication and the use of heavy-duty roller bearings ensure long, trouble-free operation.
In addition, the planetary gearboxes are characterized by a very high efficiency of up to 96 %.
We offer you suitable servo controllers with the common industrial interfaces CANbus, EtherCAT and ProfiNet for the various motor technologies.
AC standard motors
Asynchronous motors with planetary gearboxes:
With our AC asynchronous motors with planetary gearboxes, you get an excellent combination of a low-cost, robust motor that can be operated without additional electronics with the compactness, high efficiency and impressive torque resistance of the planetary gearbox.
- Inexpensive and robust motor
- Operation without additional electronics
- Compact design
BLDC motors
BLDC motors with planetary gearboxes:
The BLDC drives with planetary gears offer maximum power and dynamics in the smallest installation space. From 40 mm to 150 mm diameter and from 90 to 750 W, you will find a suitable solution for every application.
The drives are characterized by their compactness, their extremely high overload capacity of four to five times the nominal load and their wide range of variants. Here too, we can offer you the motors with optional brakes and various encoder systems, as well as various drive controllers with standard bus interfaces, some of which are integrated into the motor.
- Highest performance and dynamics in the smallest installation space
- Extremely high overload capacity (four to five times the nominal load)
- Wide range of variants (various configurations possible)
- Various encoder systems available
- Integrated or external drive controllers
DC and AC servomotors
Servomotors with planetary gearboxes:
Our DC and AC servomotors provide you with highly dynamic and precise drive technology in the most compact installation space.
Choose between motors from 100 W to almost 10 kW, with or without brakes and all common encoder systems including 16-bit multiturn encoders and combine this motor selection with planetary gearheads between 40 mm and 150 mm in diameter and permissible continuous torques of up to 360 Nm!
We offer you a suitable controller for this wide range of drives, optionally with CANbus, EtherCAT or ProfiNet.
- Highly dynamic & precise drive technology
- Compact design
- Available with or without brake
- All common encoder systems available
- Suitable controllers with CANbus, EtherCAT or ProfiNet
Beyond the modular system: customizing
The b-drives planetary gearbox modular system offers a wide variety of standard components. If these components do not fit into your application in their standard design, we have the option of making very low-threshold and highly economical adaptations. These include the shaft design, centering collars or mounting hole circles.
The adaptations can usually be implemented in a very short time and do not impair retrievability.
